NFTYPCB - Modular PCB Manufacturing with NFT for IP Controls

NFTYPCB is a revolutionary product in the field of modular PCB manufacturing, designed to provide users with a platform that enables easy upgrading and integration with future enhancements and improvements. In this info. release, we will detail the process for developing and integrating NFTYPCB into your projects, as well as provide information about our opensource partners channel and affiliate plan.

Modular PCB Design:

NFTYPCB IOT device is designed as a mobile unit with a modular PCB design. The modular PCB is built with high-quality materials, making it durable and long-lasting. The design of the modular PCB allows for easy upgrading, enabling users to upgrade individual components or modules rather than replacing the entire board. The design also allows for easy integration with other hardware, making it a perfect choice for a wide range of applications.

NFT Integration:

NFTYPCB is equipped with NFT technology, which enables users to control the intellectual property (IP) of their projects. NFTYPCB uses blockchain technology to create a unique digital token for each board, which can be used to manage and track the ownership of the board. This technology provides users with complete control over their projects’ IP, ensuring that their ideas are protected.

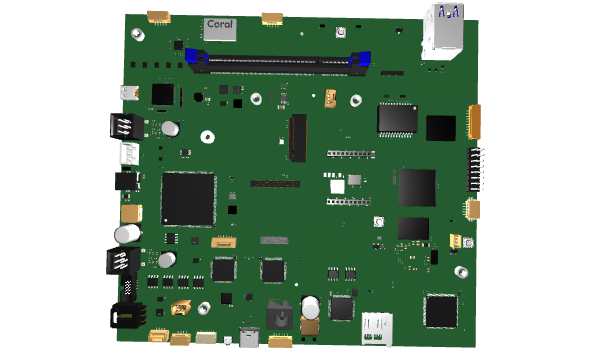

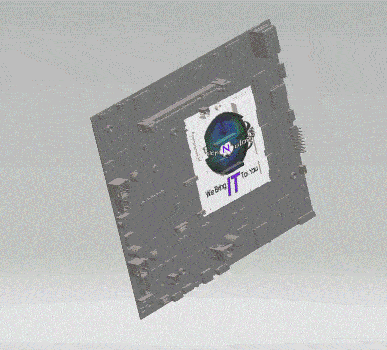

TouchBLOCk77_4pixhawk
TouchBLOCk77_4pixhawk NON-FUNGIBLE-TOKEN/NFT
TouchBLOCk77_4pixhawk v3

CUSTOM ORDER BRD900000002784
$812.79
CUSTOMIZE BOARD
Uses Accelerator Module as its COM/processor. Functional modules include: M.2 Key M 2242 NVMe Module FRAM (128 KB) FRAM (128 KB) FRAM (128 KB) FRAM (128 KB) FRAM (128 KB) FRAM (128 KB) FRAM (128 KB) FRAM (128 KB) FRAM (128 KB)

Key Components

TouchBLOCk77_4pixhawk

Name

Description

Specs

Micro HDMI (Type D)

Micro HDMI (Type D) SMT

JST-XH Top 3Pos 2.5mm

CONN HEADER XH TOP 3POS 2.5MM

MicroSD Card Slot With Isolated CD Pins

Micro-SD Card Connector [Würth Elektronik] 693071010811 Micro-SD Card Connector

DF13 R/A 5Pos 1.25mm SMT

5 position R/A connector for UART (DF13 series)

USB Type-C Port

USB Type-C Port

Connector (Power Jack Medium)

PJ-018H-SMT, medium size (1.65mm), fits EIAJ-2 plug

USB 3.0, Type A Receptacle, Stacked, Right Angle Thru-hole

USB 3.0, Type A Receptacle, Stacked, Right Angle

Intel Joule CSI Camera (JCAM) Connector

Connector, Stacking, Rcpt, 40pos, 2row

Hirose 100-pin DF40 connector, 3mm stack height

Conn Board to Board RCP 100 POS 0.4mm Solder ST SMD T/R

FTDI FT4232H Quad USB - Serial

Interface up to four devices over RS232 with an external USB connection with the FTDI FT4232 Quad USB - Serial converter.

IMU 16bit 3D Accel + 3D Gyro

IMU 16bit 3D ACCEL+3DGYRO SMD

BMM150 Series 3.6 V Surface Mount Three-Axis Geomagnetic Sensor - WLCSP-12

BMM150 Series 3.6 V Surface Mount Three-Axis Geomagnetic Sensor - WLCSP-12

FTDI FT232RQ USB UART Interface

Connect to an RS232 serial terminal over USB with the FTDI FT232RQ interface

Light to Digital Ambient Light Sensor Digital O/P 6-Pin OPLGA T/R

Light to Digital Ambient Light Sensor Digital O/P 6-Pin OPLGA T/R

MCU 32-Bit STM32 ARM Cortex M7 RISC 2MB Flash 1.8V/2.5V/3.3V 176-Pin LQFP Tray

MCU 32-Bit STM32 ARM Cortex M7 RISC 2MB Flash 1.8V/2.5V/3.3V 176-Pin LQFP Tray

Tube / F-Ram Memory Serial Rohs Compliant: Yes

Tube / F-Ram Memory Serial Rohs Compliant: Yes

TJA1051 Series 5.5 V 5 Mbps Surface Mount High-Speed CAN Transceiver - HVSON-8

TJA1051 Series 5.5 V 5 Mbps Surface Mount High-Speed CAN Transceiver - HVSON-8

Google Coral Accelerator Module

Google Coral Accelerator Module - PCIe Gen 2 or USB 2.0

Texas Instruments TFP410 DVI Controller

A compact 64-pin TQFP, PanelBus package providing a reliable, low-current, low-noise, high-speed digital interface.

Memory (SPI FRAM 1MB 1.8V)

Memory (SPI FRAM 1MB 1.8V)

DDR3L 512MB 16bit

DDR3L 512MB 16bit
